This is why waterproofing belongs in the earliest phase of construction. While the foundation remains exposed, every surface can be protected before the surrounding soil is placed back around the structure.
Let us look at how new construction foundation waterproofing is designed and installed before the ground is sealed around it.
What Is New Construction Foundation Waterproofing?
Walk onto a construction site just after the foundation has been poured, and you will see the most exposed stage of a building’s life. The concrete walls are fully visible, the excavation around them is still open, and the surrounding soil is often damp from rain or groundwater. This short window is when foundation waterproofing takes place.
New construction foundation waterproofing involves installing protective systems around the parts of a structure that sit below ground level. These systems prevent water in the surrounding soil from moving through the structure over time.
Protection normally extends across foundation walls, footings, basement slabs, retaining walls, and the structural joints that connect different sections of concrete.
Why Waterproofing Foundations During New Construction Is Critical?
Foundation waterproofing works best when installed before soil is returned around the structure. At this stage, foundation walls, footings, and joints remain fully exposed, allowing contractors to apply protection across all below-ground surfaces.
Once backfilling begins, access disappears, and correcting missing protection becomes far more difficult.
When foundations remain unprotected, moisture in the surrounding soil eventually reaches the structure. Groundwater pressure, saturated earth, and natural concrete movement create conditions where water begins entering through small cracks, joints, and porous concrete.
This moisture can lead to several forms of structural damage:
-
Corrosion of steel reinforcement within concrete
-
Cracking and deterioration of foundation walls
-
Mould growth and damp conditions in basement spaces
-
Gradual weakening of structural materials
Research in the construction sector shows that waterproofing installed during construction can reduce long-term structural repair costs by about 70% to 90% compared with remedial work carried out later.
Fixing foundation moisture after construction often involves excavation around the property, removal of hard landscaping, and installation of interior drainage systems designed to manage water that has already reached the structure.
Survey specialists frequently encounter these problems during inspections. Weather Wise Solutions often diagnoses moisture issues in buildings where foundation waterproofing was not installed during the original construction phase.
How Water Penetrates Foundation Structures?
Take a concrete wall with no visible cracks and throw a bucket of water against it. The surface may look solid, but part of that water will still be absorbed.
Concrete is not completely impermeable. It contains microscopic pores that allow moisture to move through the material over time.
Now imagine that same wall buried in soil that remains wet for long periods. Water does not hit the surface once and disappear. It stays pressed against the foundation day after day.
When the ground becomes saturated after rainfall, the pressure from that trapped water begins pushing against the walls. Engineers refer to this force as hydrostatic pressure, and in severe conditions, it can become strong enough to force moisture through weak points in the structure.
Water also finds pathways created during construction. Concrete naturally develops small shrinkage cracks as it cures. Joints form where separate concrete pours meet, and the connection between the wall and the footing is one of the most common locations where leaks develop.
Another entry point often appears around service penetrations. Pipes and utility conduits must pass through the foundation, and if the surrounding gaps are not sealed properly, groundwater can follow the outside of the pipe and enter the building.
Step-by-Step Guide to Foundation Waterproofing During Construction
Step 1: Preparing the Foundation
Everything begins with the foundation itself. After excavation, the ground around the structure is graded and compacted so the base remains stable. Footings are installed, and reinforcement bars are positioned before concrete walls are poured.
Once the concrete cures, the surface must be prepared before any waterproofing material is applied. Construction often leaves a thin layer of laitance on the concrete surface, along with rough patches or small voids. These areas are cleaned and smoothed so waterproofing materials can bond properly.
Visible cracks or imperfections are also sealed at this stage.
Step 2: Applying the Waterproofing System

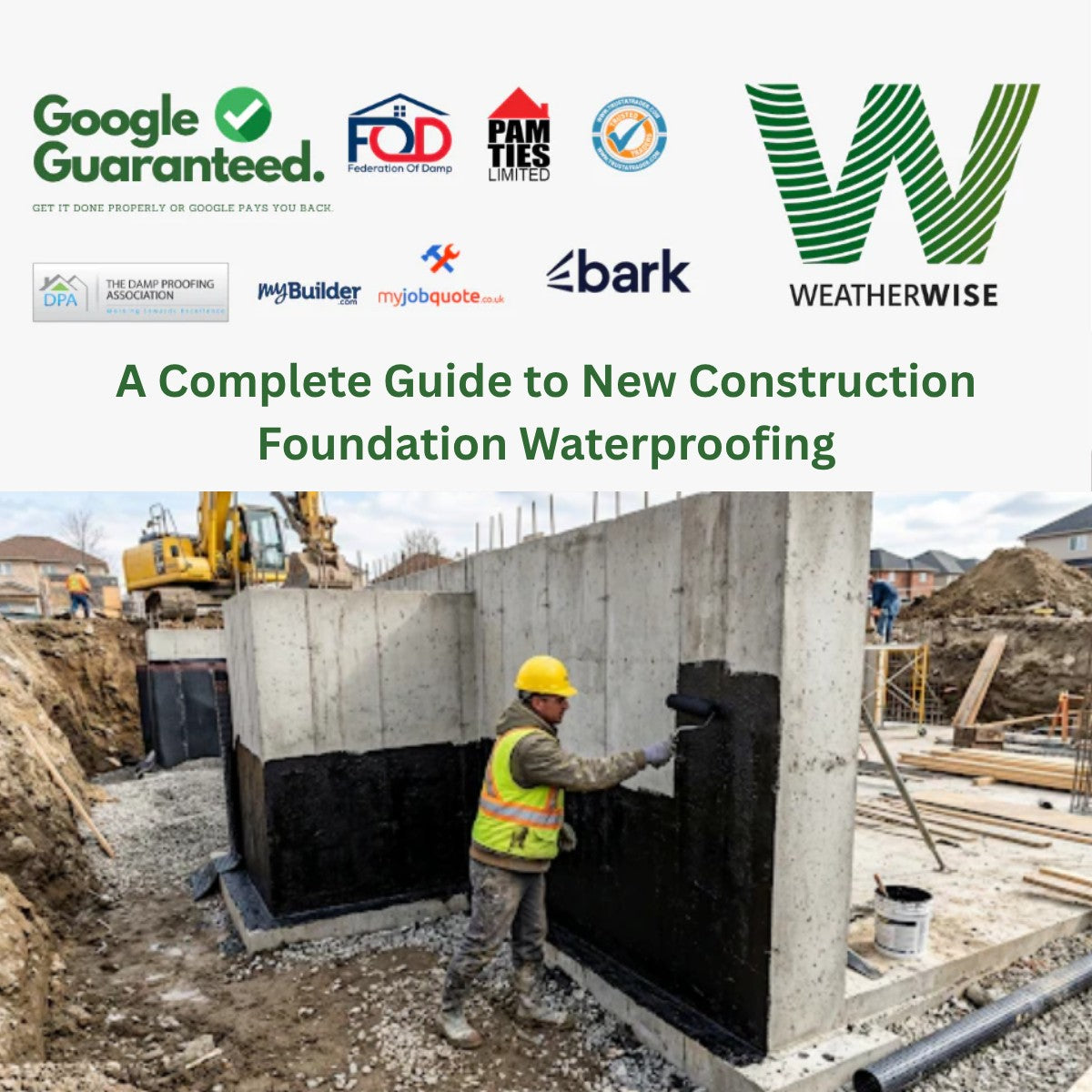

With the foundation surface prepared, waterproofing materials are installed along the exterior walls. Depending on the design, contractors apply liquid coatings, sheet membranes, or other waterproofing systems designed to block groundwater.
Construction joints are treated carefully during this stage. Waterstops and joint sealants are installed where separate concrete pours meet.
Tie holes left by formwork are sealed, and openings created for pipes or services are carefully closed to prevent future leaks.
Step 3: Installing Drainage Around the Foundation
Waterproofing materials protect the structure itself, but controlling groundwater around the building is equally important. Builders install perimeter drainage systems to redirect water away from the foundation walls.
Perforated drain pipes are placed along the footing level and surrounded with gravel so water can flow freely toward the drainage system. Drainage boards may also be added along the exterior wall surface to guide groundwater downward toward the drain pipes.
Step 4: Backfilling and Final Protection
After waterproofing and drainage systems are installed, the excavation around the foundation is filled with soil again. This process must be controlled carefully to prevent damage to the waterproofing layer.
Proper grading is also established during backfilling so rainwater drains away from the building rather than collecting around the foundation.
Once this stage is complete, the waterproofing system remains protected underground for the life of the structure.
Major Waterproofing Systems Used in New Construction
Foundation waterproofing is not done with a single material. Engineers choose different systems depending on groundwater pressure, soil conditions, and how the foundation is built.
1. Exterior Membrane Waterproofing
Exterior membranes form a physical barrier between the soil and the foundation wall. Contractors apply sheet materials such as bituminous membranes, rubberised asphalt, PVC, or HDPE to the outside face of the concrete before backfilling begins. Seams are sealed, and protection boards are added to prevent damage.
These systems stop water before it reaches the concrete, but careless backfilling can puncture the membrane if it is not protected.
2. Liquid Waterproofing Coatings
Liquid coatings are applied directly onto the concrete surface using rollers or spray equipment. Materials such as polyurethane, elastomeric, or cement-based coatings cure to form a continuous waterproof layer across the wall.
Because the coating spreads easily, it works well on irregular surfaces and corners. The barrier is thinner than sheet membranes, which can limit performance in locations with strong groundwater pressure.
3. Crystalline Waterproofing Systems
Crystalline waterproofing works inside the concrete rather than sitting on the surface. Chemical compounds react with moisture and the cement matrix to form crystals that grow through the pores of the concrete.
These crystals block water pathways and can continue developing when moisture is present. The treatment becomes part of the structure and can seal fine cracks that form during the life of the concrete.
4. Bentonite Waterproofing Systems
Bentonite systems use panels or sheets filled with sodium bentonite clay placed against foundation walls. When the clay comes into contact with water, it expands and forms a dense gel-like barrier that prevents moisture from passing through.
This method is often used in deep foundations, tunnels, and commercial structures where groundwater pressure is high, and a self-sealing barrier is required.
Foundation Drainage Systems That Support Waterproofing
Waterproofing protects the foundation surface, but it cannot perform effectively if groundwater remains trapped around the structure. Drainage systems are installed to move water away from the foundation and reduce pressure against the walls.
-
Perimeter drain pipes: Perforated pipes installed along the foundation footing collect groundwater and redirect it away from the building through a drainage outlet.
-
Gravel drainage layer: Washed gravel placed around the drain pipes allows water to flow freely toward the drainage system while preventing soil from blocking the pipes.
-
Drainage boards: Panels installed against foundation walls create vertical channels that guide water downward toward the perimeter drains.
-
Sump pump systems: Used in locations where natural drainage is not sufficient. The pump collects water from a sump pit and actively moves it away from the foundation.
Critical Waterproofing Details Often Overlooked During Construction
Even when the main waterproofing layer is installed correctly, leaks often begin at smaller construction details that receive less attention. These areas create natural pathways where groundwater can enter if they are not sealed properly.
-
Wall to footing connection: The junction where the vertical foundation wall meets the horizontal footing is one of the most common leak locations. Water moving through the surrounding soil often collects along this line, which is why installers typically place waterstops or sealants at this joint.
-
Cold joints between concrete pours: Cold joints form when concrete is poured at different times. The interface between pours can allow water to travel along the joint unless protective systems such as hydrophilic waterstops are installed.
-
Form tie holes: Removing formwork leaves small holes where form ties once held the concrete forms in place. Each of these openings must be sealed using waterproof plugs or repair materials to prevent water penetration.
-
Pipe and service penetrations: Plumbing lines, drainage pipes, and electrical conduits pass through foundation walls. Flexible sealants or protective collars are installed around these penetrations to stop groundwater from following the outside of the pipe into the structure.
Do Not Wait for the First Damp Patch
Water problems in foundations rarely announce themselves during construction. Everything can look perfect when the walls are freshly poured, and the excavation is still open. The issues usually appear years later, once the building has settled and groundwater has had enough time to test every joint, crack, and penetration.
That is why waterproofing decisions should be made early in the planning phase. Soil type, groundwater behaviour, and drainage conditions all influence how a foundation should be protected.
Small details often determine whether a foundation stays dry or slowly develops problems. A missed joint seal, an unprotected membrane, or poorly planned drainage can turn into a long-term repair project.
Specialists who deal with damp and structural moisture every day know where these vulnerabilities appear. Weather Wise Solutions carries out property moisture surveys and waterproofing assessments that help builders and homeowners address risks before the ground is closed around the foundation.
You can get one too. Contact the team today.
FAQs
Is exterior waterproofing better than interior waterproofing?
Exterior waterproofing usually provides stronger protection because it stops water before it reaches the foundation wall. Interior systems typically manage water that has already entered the structure by redirecting it through drainage channels or sump systems. For new construction, exterior waterproofing combined with proper drainage generally offers more reliable long-term protection.
How long does foundation waterproofing last?
The lifespan of foundation waterproofing depends on the system used and how well it was installed. High-quality membrane systems can last twenty to thirty years or longer when protected properly during backfilling. Some crystalline waterproofing systems may last as long as the concrete itself because the treatment becomes part of the structure.
Can foundations still leak even after waterproofing?
Yes, leaks can still occur if small construction details are overlooked. Water often enters through wall to footing joints, service penetrations, poorly sealed cracks, or damaged membranes. Even a well-designed waterproofing system can fail if drainage around the foundation is inadequate or if protective layers are damaged during construction.
