Wall Ties: Failure Signs, Types & Replacement Cost

Trouble begins when these small metal links start to break down. What you notice first is not the cause but the consequence. Fine cracks appear, sections of brickwork begin to shift, and in some cases, the outer wall starts to move away from the building.

This is where things often go wrong. Damage like this gets blamed on general movement or ageing, while the real issue stays hidden within the wall.

If you want to understand what is happening and what it may cost to fix, keep reading.

What Wall Ties Do in a Cavity Wall?

A cavity wall is made of two layers of masonry with a gap between them. The outer layer faces the weather. The inner layer carries the structure. Wall ties connect these two layers, so they act as one wall, not two separate parts.

They sit across the cavity and anchor into both sides. Their main job is to transfer pressure from the outer brickwork into the inner wall. When wind pushes or pulls against the surface, the outer leaf does not take that force alone. The load moves through the ties into the inner structure, which is built to handle it.

They also control how moisture behaves within the wall. Each tie includes a small bend near the centre. This detail stops water from travelling along the metal and reaching the inner wall after passing through the outer brickwork.

For wall ties to work properly, placement has to be correct. Each end should be embedded at least 50mm into both layers so the tie holds firmly. The tie needs a slight fall toward the outer wall so any water drains outward. The bend must sit within the cavity so it can interrupt moisture movement.

When all of this is done correctly, wall ties keep both layers connected, stable, and working together.

Which UK Properties Are Most at Risk of Wall Tie Failure?

Risk often starts with age, but it does not end there. Homes built between the 1920s and early 1980s are more vulnerable due to the type of materials used.

Wall ties from this period were commonly made from mild steel or lightly galvanised metal, including fishtail and butterfly designs. Once moisture reaches them, corrosion begins, and the metal expands, gradually weakening the connection inside the wall.

Zinc coatings used before 1981 did not last as long, which is why many of these ties have already deteriorated.

Location can accelerate that process. Properties near the coast are exposed to salt carried in the air, which settles into the masonry and speeds up corrosion once it reaches the metal. Orientation matters as well. Walls facing prevailing wind and rain, especially south-west elevations, are subjected to repeated wetting. Over time, that increases the chance of moisture reaching the ties.

Construction details can create risk even in newer homes. If the number of ties is too low or spacing is incorrect, the wall does not gain proper support. Ties that are too short or not embedded deeply enough cannot hold securely. In some cases, mortar droppings inside the cavity form a bridge between both layers, allowing moisture to pass across more easily.

Age alone does not confirm failure, and not every older property will have a problem. At the same time, newer builds are not immune. Poor workmanship can lead to issues developing far earlier than expected.

Wall Tie Failure Signs: What to Look For

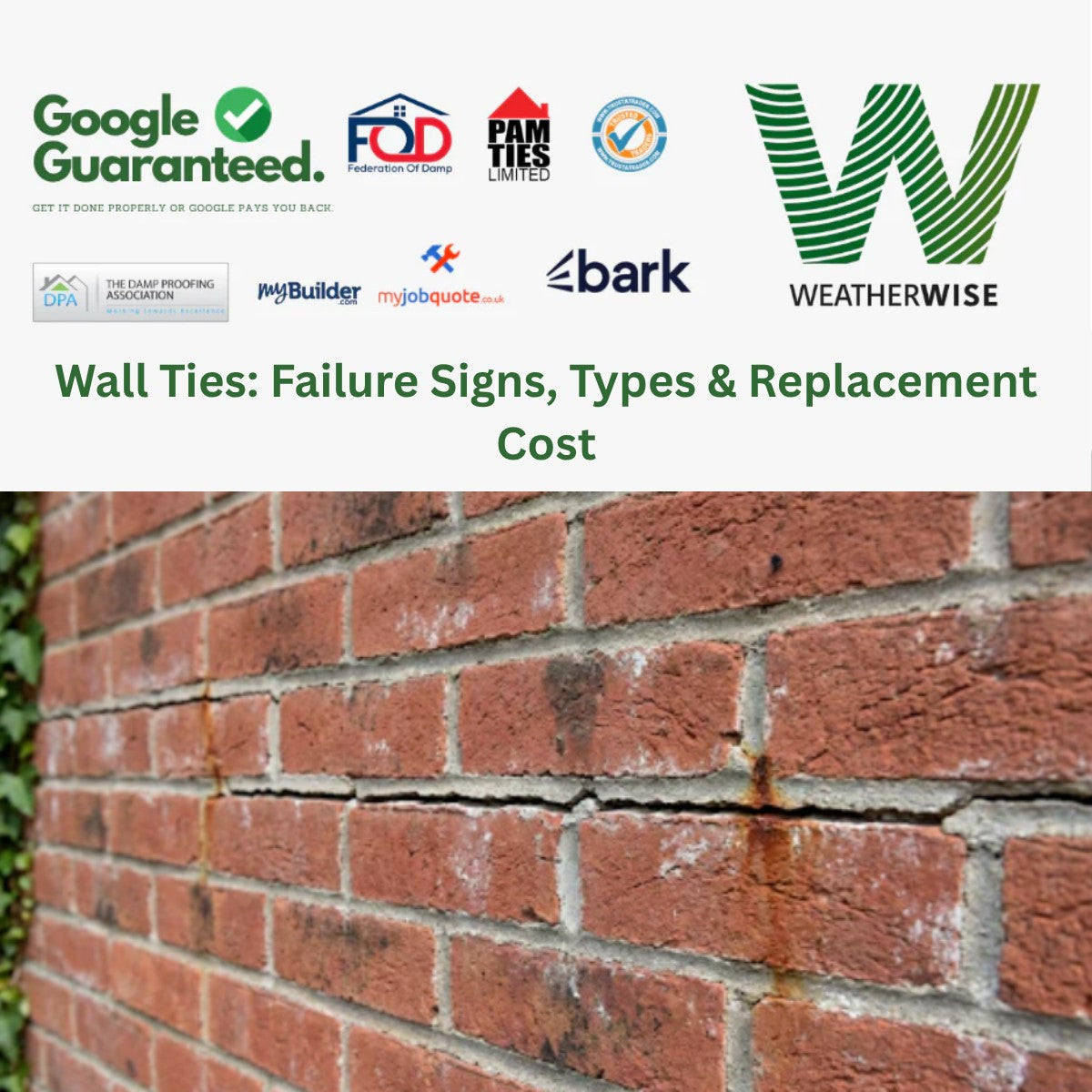

1. Horizontal Cracking Along Mortar Beds

Horizontal cracking along mortar beds is a strong early signal of wall tie corrosion. It tends to run cleanly across the brickwork, often repeating at similar heights rather than appearing in random patches.

The cause sits inside the wall. As steel ties corrode, they expand. That expansion pushes against the surrounding mortar until it splits. What you see is a crack, but the pressure is coming from within the cavity.

Pay attention to the pattern. If the crack follows a single mortar course while adjacent rows remain unaffected, it usually lines up with the position of the ties. That alignment points to internal stress from corroding metal, not general ageing or movement.

2. Cracks at Regular Intervals Pattern Recognition

Cracks that appear at consistent heights are a key diagnostic sign. You may notice them repeating every four brick courses or roughly 450mm apart, forming a pattern across the wall rather than isolated damage.

This spacing is not random. It matches the typical vertical placement of wall ties within the cavity. When corrosion develops, each affected tie exerts pressure at its location, resulting in a series of aligned surface cracks.

If you can trace that pattern across multiple sections of the wall, it strongly points to tie-related stress rather than general movement or surface-level defects.

3. Bulging or Bowing Brickwork

Brickwork that begins to push outward indicates the outer layer is no longer properly restrained. Wall ties are meant to hold that outer skin in line with the inner structure. When they fail, that connection weakens, and the brickwork can begin to move out of position.

You might first notice a slight curve along the wall or an area that no longer sits flush when viewed from an angle. In more progressed cases, sections of brickwork appear visibly bowed.

This points to a more advanced stage of failure.

4. Stepped Cracking Around Openings

Cracking around windows, doors, and similar openings often forms a stepped pattern through the mortar joints rather than a straight line. These areas are naturally weaker due to breaks in the brickwork, which makes them more sensitive to internal stress.

When wall ties begin to deteriorate, the load is no longer shared evenly across the wall. Stress concentrates around these openings, and the cracking follows the path of least resistance through the joints, creating that stepped appearance.

5. Window Reveal Separation or Uneven Depth

Look closely at the window reveals. The depth should feel consistent from edge to edge. When the outer leaf starts drifting away from the inner wall, that alignment changes.

You may notice one side sitting slightly deeper or proud compared to the other. In some cases, a small gap opens along the reveal, or the frame no longer sits evenly within the opening.

This happens when the outer brickwork is no longer held tightly in place. With the connection weakened, it begins to shift on its own. Uneven reveals are often one of the clearest on site signs that the two layers of the wall are no longer moving together.

6. Loose Mortar, Brick Movement, or Lintel Distortion

Mortar that starts breaking down or joints that appear widened can signal internal instability. As wall ties corrode, their ability to hold the brickwork weakens, and the surrounding masonry begins to respond.

Bricks may feel slightly loose under pressure, or small shifts become visible along the courses. The change often develops gradually, which makes it easy to overlook in the early stages.

In more advanced cases, the impact reaches structural elements such as lintels. These can begin to sag or lift at one end, particularly above openings. Once support becomes uneven, the surrounding brickwork adjusts, leading to visible distortion in these areas.

Why Wall Ties Fail (And Why Symptoms Differ by Tie Type)

1. Corrosion and Expansion Mechanism

The damage does not begin where you see it. It starts on the metal buried inside the wall.

Older mild steel ties sit in a damp environment for years. Once corrosion sets in, the metal begins to swell. That change is not minor. The tie grows in thickness and starts pressing outward against the mortar around it.

This is where the first cracks come from. The pressure builds along the joint until it splits. What looks like a surface issue is actually a force being applied from within the wall.

At the same time, the tie is losing its strength. So while it is pushing the masonry apart, it is also failing at its main job of holding both layers together.

That combination is why the symptoms can look different depending on the type of tie used.

2. Different Failure Behaviour by Tie Design

The way damage appears can change depending on the type of tie used, which is why the same issue does not always look the same from one property to another.

Fishtail ties are heavier in section. When corrosion develops, the metal expands with enough force to push directly against the surrounding mortar. This usually shows as clear horizontal cracking along the joints where the ties sit.

Butterfly or wire ties behave differently. They are thinner and do not generate the same outward pressure as they deteriorate. Rather than forcing the mortar apart, they tend to weaken and break.

In these cases, cracking may be limited or absent in the early stages. The first visible sign is often movement in the brickwork, where the outer layer begins to shift because the connection has already failed.

3. Construction Defects

Some walls fail without waiting decades. The issue starts during construction.

A tie that barely sits into the brickwork cannot hold anything in place. It might pass a quick check when the wall goes up, but under wind pressure, that shallow grip offers very little resistance. The connection weakens long before corrosion even becomes a factor.

Mortar can create the same problem. If it is too weak or poorly compacted around the tie, the metal never fully locks into the wall. Over time, small movements begin around that point, and the tie loses its effectiveness without any obvious early warning.

Spacing errors create a different kind of weakness. When ties are placed too far apart or skipped in sections, parts of the wall are left without proper restraint. Those unsupported areas respond first, which is why movement or cracking often appears in isolated patches rather than across the whole elevation.

Types of Wall Ties Used in UK Construction

Historic Wall Tie Types Found in Older Properties

Older properties often contain tie types that reflect the standards of their time, and each comes with its own limitations.

In early cavity walls, builders used slate or tile strips to link both leaves. These were simple inserts placed between courses, offering basic restraint but very little long term reliability once exposed to moisture.

Cast iron ties followed, but they brought a different problem. While strong in compression, they are brittle by nature. Over time, exposure to damp conditions leads to corrosion and cracking within the metal itself.

Mild steel ties became more common as construction methods improved. Some were coated with bitumen, others galvanised. Both offered protection at the start, but once that coating wore away, the metal underneath became vulnerable.

Fishtail and butterfly designs appear frequently in properties built before the 1980s. These shapes were easy to install and widely used, which is why they are often encountered during inspections today.

Modern Wall Tie Classifications

Current standards group wall ties by how much load they can handle and the level of exposure they are designed for. This helps ensure the right type is used based on building height, location, and weather conditions.

• Type 1 ties are used where demand is highest. These are specified for taller buildings or areas exposed to strong wind and severe weather. They provide the highest level of restraint between both leaves.

• Type 2 ties are the standard choice for most residential construction. They are suitable for typical housing where exposure levels are moderate, and loading is within normal limits.

• Type 3 ties are used where structural demand is lower. These are suited to buildings with reduced exposure, where less force is acting on the outer wall.

• Type 4 ties are intended for light-duty situations. They are commonly used in low-rise domestic properties located in more sheltered environments, where both height and exposure are limited.

Tie Length Selection Based on Cavity Width

Tie length is not a guess. It has to match the cavity so each end sits securely within both layers of masonry.

For standard builds, the following sizes are typically used:

• 200mm for cavities between 50mm and 75mm


• 225mm for 76 to 100mm


• 250mm for 101 to 125mm


• 275mm for 126 to 150mm


• 300mm for 151 to 175mm

As the cavity increases, the tie must extend further to maintain proper embedment on both sides. If the tie is too short, it will not grip securely within the brickwork.

For wider cavities, length is calculated by adding 125mm to the cavity width. This ensures there is enough embedment at both ends for the tie to perform as intended.

Remedial Wall Tie Systems Used in Replacement

The choice of replacement tie depends on how the masonry behaves when worked into. One system does not suit every wall.

• Helical ties are driven into the brickwork and hold through a continuous grip along their length. They suit dense, well-bonded masonry where the material can take that direct drive without breaking down.

• Mechanical ties rely on expansion within the drilled hole. A sleeve opens and presses against the sides to lock in place. This works where the surrounding material is strong enough to resist that pressure, but weaker masonry can lose its hold.

• Resin fixed ties are used when the wall cannot reliably support expansion or direct drive. The tie is bonded into place using structural resin, which creates a consistent fix even where the substrate is uneven.

The condition of the masonry decides what will hold long-term. Softer material limits certain systems, which is why the method is chosen after assessing what the wall can actually support.

How Wall Tie Surveys Are Carried Out?

Stage 1: Locating Existing Wall Ties

The first step is finding out what is actually inside the wall, not guessing from the surface.

A survey starts with a metal detector scan across the brickwork. This maps where the ties sit, how regularly they are spaced, and whether the overall density matches expected standards, usually ~2.5 ties per m².

What matters here is the pattern. A consistent signal across the wall suggests a uniform layout. Gaps, irregular spacing, or weak readings raise questions about what is missing or no longer intact

These variations can point to:

• Ties that were never installed


• Ties that have fractured or deteriorated


• Inconsistent placement during construction

This stage builds a layout of the wall before any drilling begins, which helps avoid unnecessary damage and highlights areas that need closer inspection.

Stage 2: Internal Inspection Using Borescope

Once the layout is mapped, the next step is to see the ties directly. Surface scans cannot show the condition, so access into the cavity is required.

Small diameter holes are drilled into the mortar joints rather than the bricks. This keeps the process controlled and avoids unnecessary damage to the masonry. A borescope is then inserted through the opening, giving a clear view inside the wall.

This inspection confirms what the ties are made from, how far they are embedded, and how they are holding up after years of exposure. Early corrosion, heavy rusting, or loss of section can all be identified at this stage.

Stage 3: Invasive Inspection When Needed

Some walls do not allow a clear view through a scope. Filled cavities, debris, or restricted access can hide the critical areas.

In these cases, a small section of brickwork is opened by removing one or two bricks. This gives direct access to the tie where it sits within the joint, not just the visible span across the cavity.

That detail matters. Corrosion is often more severe where the tie is embedded in mortar. The outer section may appear acceptable, while the part inside the joint has already lost strength.

This step is only used when earlier checks do not provide enough clarity, but it gives a far more accurate picture of the tie’s actual condition.

Stage 4: Condition Grading

After inspection, the findings are assigned a condition rating rather than left open to interpretation. In the UK, this is often based on BRE Digest 401, which uses a numbered scale to classify what is happening within the wall.

The grading separates early surface rust from cases where expansion is already stressing the surrounding mortar, and from situations where the ties have lost their function altogether.

This rating is not just for record-keeping. It guides the next step. Lower scores may only need periodic checks, while higher scores lead to replacement. The decision comes from a measured condition, not surface appearance.

Stage 5: Reporting and Recommendations

The final stage turns inspection data into a clear, usable report. This is where everything comes together.

A proper report should set out:

• The type of ties found within the wall


• Whether spacing and density meet expected standards


• The level of corrosion observed during inspection


• The most suitable remedial method based on those findings



Clarity is important here. A good report does not leave you guessing or interpreting technical language. It shows what is present, what condition it is in, and what needs to happen next.

This is also where the difference between a quick check and a structured survey becomes obvious. A thorough assessment, like the ones carried out by Weather Wise Solutions, is built on measured data and direct inspection, and not assumptions based on surface signs.

Wall Tie Replacement: What the Process Involves

The work starts by locating the existing ties and setting out a new fixing pattern. This ensures the wall will have consistent support once the new ties are in place.

New stainless steel remedial ties are then installed into both leaves. Each fixing is set to the correct depth so it can hold securely within the masonry. Selected ties are tested to confirm that the wall can provide enough resistance.

Only after the new ties are in place are the original ones addressed. Corroded ties are isolated or removed to stop further expansion within the wall.

All drilled holes are then filled, and the joints are made good so the repair blends into the surrounding brickwork.

Here are a few technical requirements that guide how this work is carried out:

• New ties must be installed before any existing ones are treated or removed

• Spacing should avoid existing tie positions, typically by at least 200mm

• Overall density should meet standard levels, around 2.5 ties per square metre

Tie replacement does not always resolve every issue.

In some cases, crack stitching is needed where structural cracks have formed. Lintels above openings may require repair or replacement if movement has affected their support. Where bowing is severe, sections of the wall may need to be rebuilt to restore proper alignment.

Wall Tie Replacement Cost in the UK

Costs vary depending on how the work is measured and what the wall actually needs. Some contractors price per tie, others per square metre, which is why figures can differ even for the same property.

Typical ranges fall within:

• £5 to £8 per wall tie

• £25 to £50 per m²

• Survey costs between £100 and £450, although some providers include this at no charge

To understand this better, take a wall area of 60m². That would usually require around 150 ties.

A tie-based estimate would sit between £750 and £1,200, and an area-based estimate for the same wall could range from £1,800 to £3,000.

This is because one quote may cover basic installation, while another includes access, testing, and making good.

Several factors influence the final figure. The number of elevations being treated changes the overall scope. Access can increase cost where scaffolding is required. Existing ties may need to be isolated or removed, which adds time. External finishes such as render or cladding can complicate the work. Structural repairs like crack stitching or rebuilding will also raise the total.

There is no fixed national price for this type of work. Costs vary based on the condition of the wall and how accessible it is. Differences in quotes usually reflect differences in what is actually being carried out.

UK Regulations and Compliance for Wall Ties

When wall ties are replaced, the work has to follow set rules. This is not just paperwork. It decides whether the repair will last or fail again.

• BS EN 845-1 covers the ties themselves. It sets the requirement for strength and durability, which is why stainless steel is now used. Older coated steel did not hold up inside damp cavities.

• PD 6697 deals with how those ties are applied on site. It sets out spacing, tie selection, and where additional fixings are needed, depending on exposure and building type.

In practical terms, ties are usually set at 900mm across and 450mm up the wall. That gives a minimum of 2.5 ties per m². Around openings and edges, the spacing tightens to give extra support where the wall is more vulnerable.

If the work involves rebuilding a large section of the wall, insulation may need to be brought up to current standards. That requirement comes from building regulations, not the tie system itself.

Where a wall is shared, the Party Wall Act can apply. If the work affects that boundary, notice may be required before starting.

Before You Agree to Wall Tie Work, Check This First

The outcome depends on how the problem is assessed, not just how the ties are installed.

A proper survey should confirm tie type, spacing, and condition. Without that detail, recommendations are based on guesswork. Pull testing is just as important, as it shows whether the masonry can hold new fixings.

You also need clarity on what happens to the existing ties. If corroded metal is left active, expansion can continue behind the wall. Finishing matters too. Poor making good leaves visible signs across the brickwork.

Guarantees should be clear and meaningful. Check the length, whether they are insurance-backed, and if they remain valid for future owners.

This is where a structured approach makes the difference. Weather Wise Solutions focuses on accurate surveys, clear findings, and repair plans based on actual wall condition, not assumptions.

If cracking or movement has started, early inspection keeps the situation controlled. With coverage across Staffordshire, Cheshire, Greater Manchester, Merseyside, North Wales, and Derbyshire, you can arrange a survey and get a clear answer on what your wall needs next.

FAQs

How do I know if my wall ties need replacing?

Early signs tend to show along the mortar lines. Horizontal cracking, repeated patterns at similar heights, or sections of brickwork that no longer sit flush are all indicators. These signs alone are not enough for a decision. A proper survey with borescope inspection confirms what is happening inside the wall and whether replacement is required.

Is wall tie failure dangerous?

Yes, in the early stages, the issue develops slowly. As it progresses, the outer brickwork can lose its restraint and begin to move independently. This can lead to instability, especially in exposed areas. The risk depends on how far the failure has advanced, which is why timely inspection is important.

Can wall tie failure be mistaken for subsidence?

Yes, and it happens often. The confusion comes from visible cracking. Subsidence usually forms diagonal cracks that pass through bricks and mortar. Wall tie failure follows horizontal joints and often repeats at regular heights. Looking at the pattern gives a clearer indication, but confirmation should always come from inspection.

How long does wall tie replacement take?

For an average property, the work is usually completed within one to three days. The exact duration depends on access, the number of elevations involved, and whether additional repairs are required. More complex cases, such as those involving structural movement or rebuilding, can extend the timeline.

Do I need scaffolding for wall tie replacement?

Access depends on the height and layout of the property. Ground-level work can often be carried out without full scaffolding. For multi-storey buildings or areas that are difficult to reach safely, scaffolding is typically required to allow proper installation and finishing.
